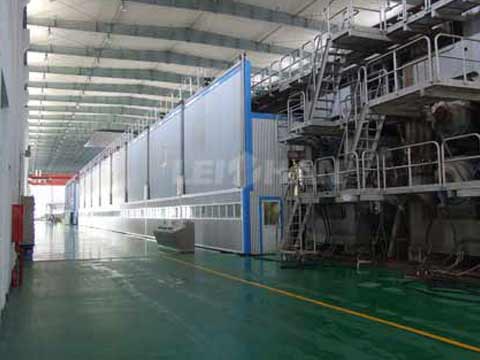

3600/250 Multi-Wire Multi-Cylinder Paper Machine
3600/250 Multi-Wire Multi-Cylinder Paper Machine is for 90-250g/m² high-strength corrugated paper/ craft paper making. The paper machine is consist of double wire forming section, press section, dryer section, reeling machine, calender, foundation part, paper machine auxiliary system and other components.
3600mm High-Strength Corrugated/ Craft Paper Machine
Main Product: High strength corrugated paper/ craft paper
Basic Weight: 90-250g/m2
Trimmed Width: 3600mm
Paper roll width: 3660mm
Lip width of headbox: 3950mm
Design speed: 250m/min
Working speed: 180m/min
Gauge : 4700mm
3600/250 Multi-Wire Multi-Cylinder Paper Machine Parts
Forming Section: adopt open type headbox, double wire forming (top layer 7m, bottom layer 20m);
Press Section: 1st vacuum press（Φ850/Φ850), Two double felt large roll diameter press(Φ1350/Φ1350)
Dryer Section: 24 pieces of Φ1800mm dryer cylinder, arranger form: 8+8+sizing machine+8+two-roll Calender
Traditional drive adopts section drive, AC frequency conversion speed control
