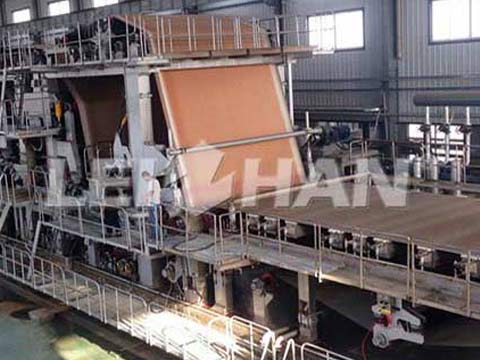

3400mm Two Wire Multi-Cylinder Kraft Paper Making Machine
3400mm Two Wire Multi-Cylinder Kraft Paper Making Machine use OCC as material for 150tpd kraft paper/ high-strength corrugated paper making. The kraft paper machine details is following:
3400mm Kraft Paper Making Machine
Main product: kraft paper, high-strength corrugated paper
Basic weight: 90-180g/m2
Width of paper: 3400mm
Capacity: 150TPD
Working speed: 350m/min
Designed speed: 400m/min
Distance between sole-plates: 4500mm
Driving mode: AC motor frequency conversion speed subsection drive
Kraft Paper Machine Making Process
Air cushion type headbox — Double fourdrinier wire — First stage vacuum suction transfer roll — Fist stage k type combined press — First stage double felts φ1350 big roll press — One φ1500 leading paper dryer cylinder — 3 φ1500UNO dryer cylinders and 23 φ1800 dryer cylinders(1+3/3 adopts single hanging type +10+10 ) — Sizing machine — 10 φ1800 dryer cylinders — Calender — B/M — Pneumatic reeling machine
