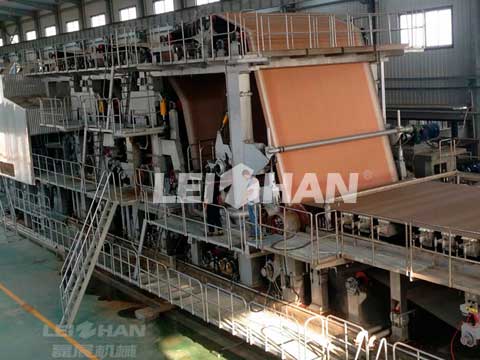

100T Carton Board Paper Pulping Machine
Carton board paper is one of most popular packaging paper in the market.Leizhan provides full set of pulping machine for 100t carton board paper making. The top layer uses commodity wood pulp as raw material, output for 30t/d. The bottom layer uses LOCC as raw material, output for 100t/d. More info about the machine as following.
Top Layer Pulping Machine For Carton Board Paper Making
D Typr Hydrapulper: 5m3，Ø16mm，C=3~5%
High Density Desander: Q=1800～2600l/min, C=3～5%, P= 0.2～0.5MPa
Low Density Cleaner: 800 l/min C=0.2~0.5%
Conical Refiner: Ø350mm，C=3~5%
Double Disc Refiner: Ø450mm，C=3~5%
Bottom Layer Pulping Machine For Carton Board Paper Making
D Type Hydrapulper:15m3 C=3~5%
High Density Desander:Q=3000~4500l/min, C=3～5%, P= 0.2～0.5MPa
Mid Consistency Pressure Screen: A=0.9m2 h=2.4mm， C=3~4%
Reject Separator: Ø380mm C=1~2% 4mm
Low Density Desander: Ø600ml/min,C=1.2%
Fine Screen: A=0.6m2 S=0.22mm C=1.2%
Inflow Pressue Screen:A=0.6m2 C=0.4% s=0.35mm
As a professional pulping machine supplier,Leizhan have continued to a full range of services, including design solutions, technical support and after-sales service. Any interest, welcome to send us email or leave your contact info on this website.
Email：leizhanpulper@gmail.com
