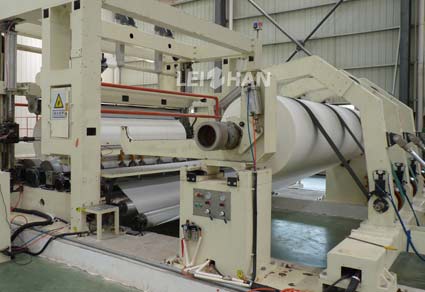

Overfeed High Speed Paper Rewinding Machine

overfeed-high-speed-paper-rewinding-machine

1350 Type overfeed high speed paper rewinding machine is to the net paper width ≦ 1350mm, 100-500g/m2 paper rewinding, put the original paper roll on the unwinding stand of the rewinder and rewinding it into final paper roll according to the width & tightness requirement.

Paper Rewinder Machine Structure

The paper rewinding machine consists of framework device, slitting device, paper retreat device, driving device, supporting device, paper roll tension device, paper push device, hydraulic pressure system and electricity machines, etc.

Paper Rewinder Machine Specification

Base weight: 100-500g/m2

Paper trimmed width: 1350mm

Balance speed: 500m/min

Working speed: 350m/min

Feeding type: overfeed

Lifting device: Hydraulic lift

Motor power: 18.5kw
