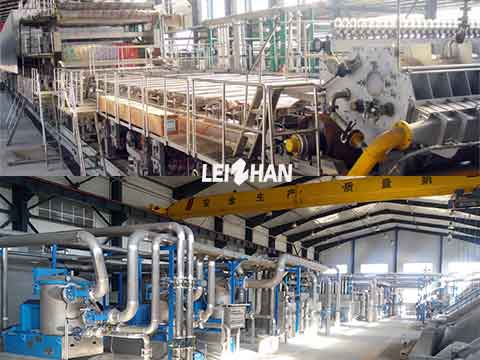

30T/D Corrugated Paper Production Line Machine

This 30t/d corrugated paper production line machine has paper pulp making process and corrugated paper making equipment. The paper pulping line adopts LOCC as raw material. Here are some information.

LOCC Stock Preparation For 30T/D Corrugated Paper Production Line

D type hydrapulper: 5m3, 75kw
High density cleaner: Q=3000~4500l/min
First stage mid consistency coarsc screen: h=2.6mm, 37kw
Reject separator: C=1~2%, 30kw
Mid density cleaner: Q=3000~4500l/min
Mid consistency fine screen: A=0.6m2
Double disc refiner: C=3~5%, 37kw
Paper machine screen: s=0.35mm, 15kw

Corrugated Paper Machine Specification

1. Raw material: waste paper
2. Trimmed width: 1880 – 2880mm
3. Production capacity: 30t/d
4. Basic weight: 60 – 150gsm
5. Paper kind: corrugated paper, cardboard paper

In 30t/d corrugated paper production line machine, you can get more specification data and total cost. Of course, our enginner can meet your requirements. Contact us for more details. Email: leizhanpulper@gmail.com
