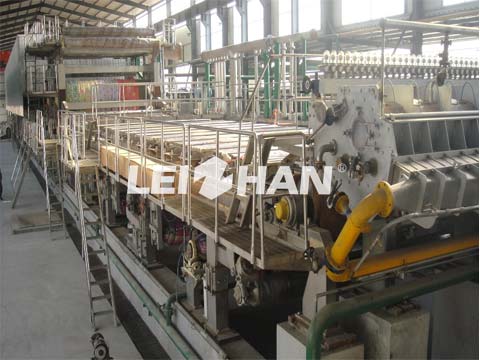

Corrugated Paper Machine With Advanced Manufacture



The wire paper width of Corrugated Paper Machine With Advanced Manufacture is 4600mm, which is mainly used for making low-basis and high-strength corrugated paper. The Corrugated Paper Machine With Advanced Manufacture is mainly divided into the following parts: headbox, long wire section, press section, front drying section, diagonal row surface sizer, post-drying section, and coiling section.

Corrugated Paper Production Machine Datails

1.Headbox: air-cushion headbox, controls and stabilizes the sizing head of the on-line slurry by controlling the gas pressure in the headbox.
2.Wire section: single long wire, main components contain chest roll, forming plate, dewatering plate, vacuum box, vacuum roll, drive roll, guide roll and frame.
3.Press section: includes first press, second press and third press. three of these stages are equipped with a guide roller and a blanket suction box. besides, their pressurize way are corrugated pneumatic tire.
4.Front drying section: 24 Φ1800 drying cylinders, 8+8+8 group transmission. with a semi-closed hood.
5.Diagonal row surface sizer: one chrome-plated metal roller and one rubber-coated metal roller. The surface size presser pressurize way is corrugated pneumatic tire.
6.Post-drying section: 12 Φ1800 drying cylinders, 6+6 group transmission. with a semi-closed hood.
7.Coiling section: pneumatic horizontal reeling machine.

Corrugated Paper Making Machine Technology Data

Trimmed Width: 4600mm.
Basis Weight: 60-150g/m2.
Operating Speed: 100-800m/min.
Production Capacity: 15-500t/d.
Burst Strength: 650-1000kPa.
Side Pressure Strength:3-4.5KN/m.
Transmission Mode: frequency conversion speed division drive.

We are specialized in paper making industry for 40 years, besides Corrugated Paper Machine With Advanced Manufacture, we also can provide the other kinds of paper machine for you, welcome to consult to us if you have any question or demand.  email: paperproductmachine@gmail.com
