100TPD Kraft Paper Making Project

100tpd-kraft-paper-making-project

Paper pulping process and kraft paper making process are necessary for 100TPD kraft paper making project, so the complete paper making machine is vital for finished kraft paper making.

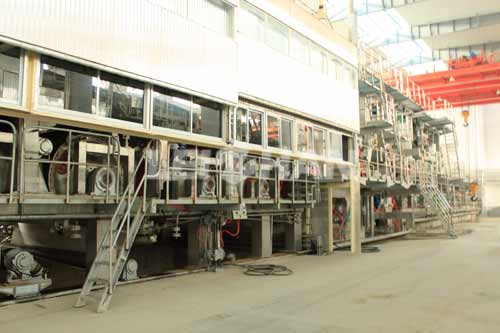

3200mm Kraft Paper Machine

Final Paper Kind: Kraft Paper

Trimmed Width: 3200mm

Base Weight: 80-200GSM

Production Capacity: 100tpd

Working Speed: 100-180m/min

Design Speed: 230m/min

Gauge: 4300mm

Drive Form: AC Frequency Fractional Driving

Paper Pulping Process

Top Layer Pulping: Pulping(D-type hydrapulper) — Cleaning(High density cleaner) — Screening(Inclined screen) — Refining(Conical refiner and Double disc refiner) — Screening(Pre-machine screen)

Bottom Layer Pulping: Pulping(D-type hydrapulper) — Cleaning(High density cleaner) — Coarse Screening(M.C. coarse pressure screen) — Fine Screening(M.C. fine pressure screen)— Refining(Double disc refiner) — Screening(Pre-machine screen)
